ToF

iLidar

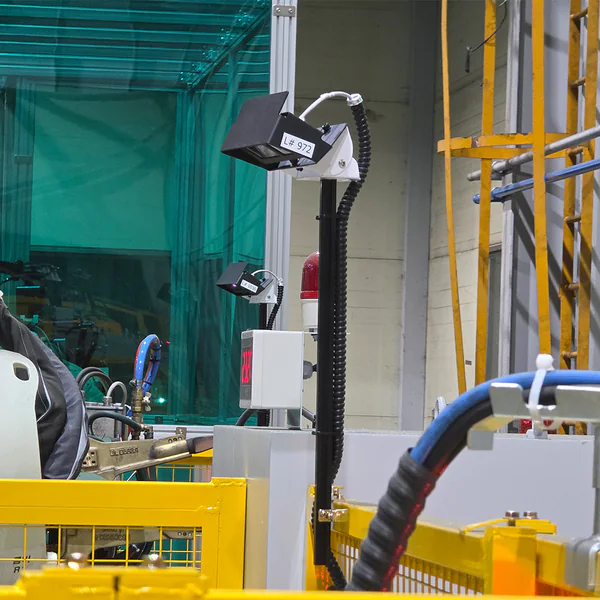

LiDAR, which actively measures distance using light, is essential sensor for robotics. HYBO iLidar-ToF is the complete solid-state LiDAR that can be easily customized and optimized for every demand. Therefore, iLidar-ToF can be applied to various automation projects such as self-driving robots, intelligent intersections, parking lots or smart factories.

Key Features

Complete Solid-State

iLidar-ToF is the Complete Solid-State LiDAR capable of measuring 3D at a single capture with no moving part, providing high reliability and durability.

Optimized FoV & Range

iLidar-ToF can implement a variety of angles and measurement distances only by replacing the optical system without extra development.

Specifications

MODE 3

25 m

160 x 60

0.8º x 0.8º

MODE 2

18 m

320 x 60

0.4º x 0.8º

MODE 1

12 m

320 x 120

0.4º x 0.4º

115 mm (W)
45 mm (H)
29 mm (D)

8 W
(12 V or PoE)

Ethernet
(PoE)

120º x 45º

12.5 Hz

140 g

RANGE

POINT SCAN

RESOLUTION

FOV

FRAMERATE

SIZE

WEIGHT

POWER

INTERFACE

Demo Videos
